SPAN Ports vs. Network TAPs

Understanding Network Visibility Options

In the world of network monitoring and troubleshooting, two common methods for capturing traffic are SPAN (Switched Port Analyzer) ports and network TAPs (Test Access Points). While both serve the purpose of providing visibility into network traffic, they differ significantly in their approach and capabilities. This article explores how SPAN ports work, their limitations, and how they compare to network TAPs.

How SPAN ports work

SPAN ports, also known as mirror ports, are a feature of network switches that allow traffic from one or more switch ports to be copied and sent to a monitoring port. This functionality enables network administrators to capture and analyze traffic without physically interrupting the network connection.

unnamed (6)

The process works as follows:

  1. The network administrator configures the switch to designate a specific port as the SPAN port.
  2. The administrator then selects which port(s) or VLAN(s) should have their traffic mirrored to the SPAN port.
  3. As traffic passes through the monitored ports, the switch creates a copy of each packet and sends it to the SPAN port.
  4. A monitoring device or analysis tool connected to the SPAN port receives these copied packets for examination.

SPAN ports offer a convenient and cost-effective way to gain visibility into network traffic, especially for smaller networks or temporary monitoring needs. However, they come with several limitations that are crucial to understand.

Limitations of SPAN ports: The "interpreted view"

While SPAN ports provide a useful glimpse into network traffic, it's important to recognize that they offer an "interpreted view" of the network based on what the switch sees and processes. This interpretation can lead to several limitations:



  1. Packet loss during high-traffic
    Switches prioritize their primary function of forwarding traffic over mirroring. During periods of high network utilization, the switch may drop mirrored packets to maintain its core switching functions. This can result in an incomplete picture of network activity, potentially missing critical information during the busiest times when visibility is most needed.

  2. Limited visibility
    SPAN ports may not capture all types of traffic. For example, some switches don't mirror intra-switch traffic (traffic between ports on the same switch) to the SPAN port. This can create blind spots in your network monitoring.

  3. Timing alterations
    The process of copying and sending packets to the SPAN port can introduce slight delays or alter the timing between packets. This can lead to inaccurate performance measurements for applications sensitive to packet timing, such as VoIP or real-time financial transactions.

  4. Unidirectional monitoring limitations
    Many SPAN implementations only support unidirectional traffic monitoring, meaning you might only see traffic in one direction (e.g., ingress or egress) on a given port. This can make it challenging to get a complete picture of a two-way conversation.

  5. VLAN tagging issues
    Some switches strip VLAN tags when mirroring traffic to a SPAN port, making it difficult to identify the original VLAN of a packet.

  6. Oversubscription
    If the total bandwidth of the monitored ports exceeds the capacity of the SPAN port, oversubscription occurs, leading to packet loss.

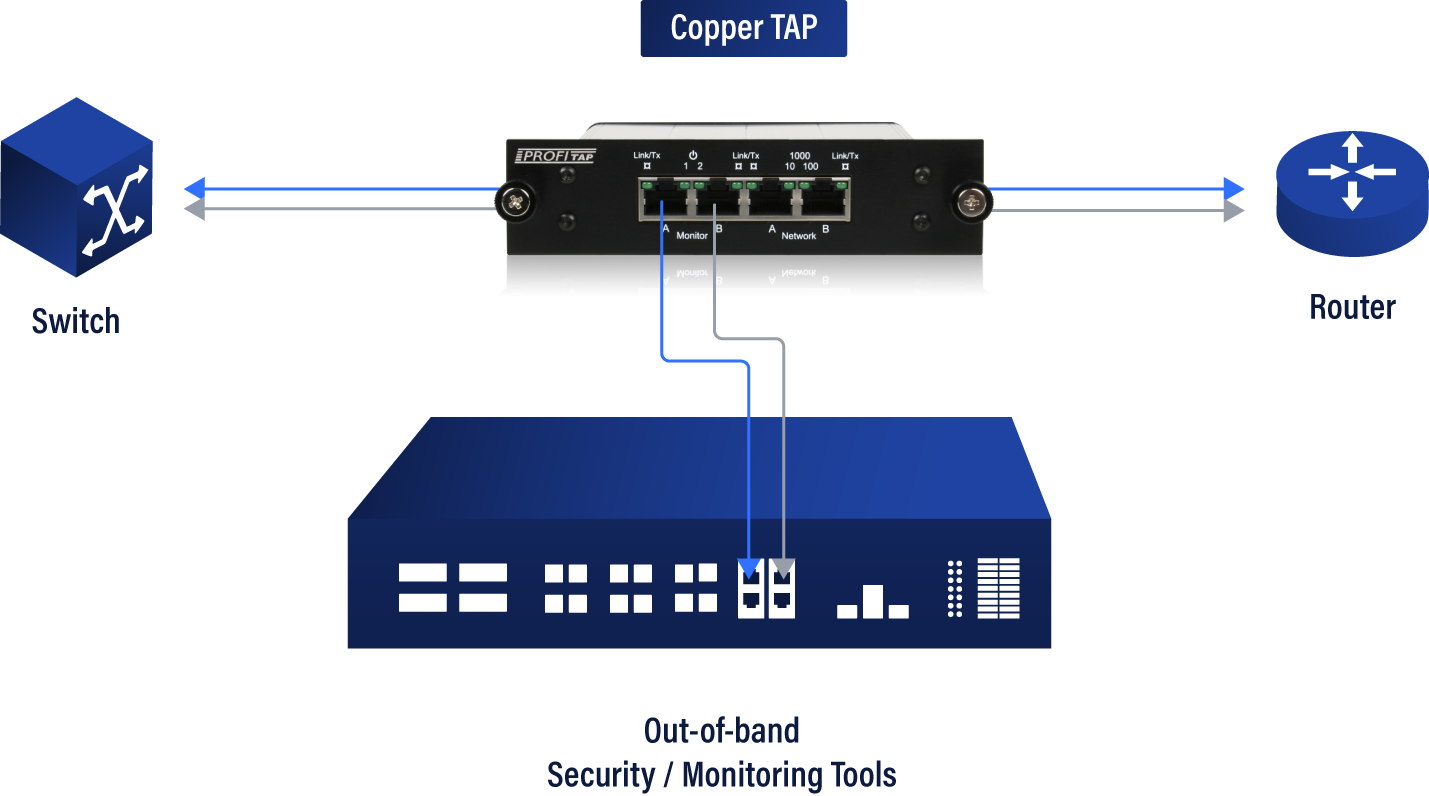

Network TAPs: An unrestricted view of the data layer

In contrast to SPAN ports, network TAPs provide an unrestricted and complete view of network traffic. A TAP is a hardware device that passively captures traffic as it passes between two network nodes.

Key advantages of network TAPs include:

  1. Complete traffic capture
    TAPs see every packet that crosses the network segment, including malformed packets, VLAN tags, and layer 1 errors that switches might drop or not mirror to a SPAN port.

  2. No packet loss
    TAPs are designed to pass through all traffic without dropping packets, even during periods of high network utilization.

  3. Zero impact on network performance
    TAPs are passive devices that don't introduce latency or affect network throughput.

  4. Bidirectional monitoring
    Most TAPs provide separate monitoring ports for each direction of traffic, ensuring you capture both sides of every conversation.

  5. Accurate timing
    TAPs don't alter the timing of packets, providing an accurate representation of network behavior crucial for performance analysis.

  6. Fail-safe operation
    Many TAPs are designed to maintain network connectivity even if the TAP loses power, ensuring no disruption to critical network links.

Aggregation and Full-Duplex capture

One significant advantage of using TAPs, especially with advanced capture devices like the ProfiShark, is the ability to capture full-duplex network speeds in both directions simultaneously. This is particularly important for high-speed networks where the combined ingress and egress traffic might exceed the capacity of a single monitoring port.

With SPAN ports, you have to carefully consider throughput limitations. If the total traffic exceeds the capacity of the SPAN port, you'll inevitably lose packets. In contrast, TAPs combined with capable capture devices can aggregate traffic from both directions without loss, providing a complete picture of network activity even on saturated links.



Conclusion: Choosing the right tool for the job

While SPAN ports offer a convenient and cost-effective way to gain network visibility, their "interpreted view" of network traffic comes with significant limitations. For critical monitoring and troubleshooting scenarios where complete and accurate traffic capture is essential, network TAPs provide a superior solution.

Network TAPs offer an unrestricted view of the data layer, ensure every packet is counted, and provide the most accurate representation of network traffic. Combined with advanced capture devices, they enable full-duplex capture at line rate, overcoming the aggregation and throughput limitations of SPAN ports.

Ultimately, the choice between SPAN ports and TAPs depends on your specific monitoring needs, budget, and the criticality of the monitored network segment. For casual monitoring or in situations where installing a TAP is not feasible, SPAN ports can still provide valuable insights. However, for mission-critical applications, security monitoring, or performance analysis where every packet counts, network TAPs are the clear choice for ensuring complete network visibility.
